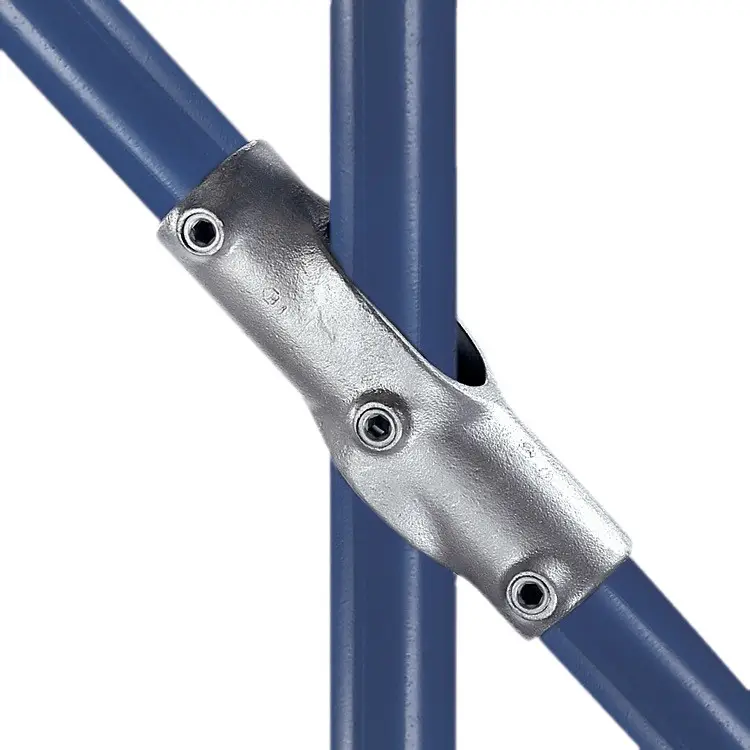

SK30-8 30° to 45° Adjustable Cross

Description

Takes a mid-rail into a post at 30 to 45 degrees. The upright runs through an elongated bore so the rail can be set to the pitch of the flight.

Stair guardrail fitting: one cross covers the whole range instead of a fixed angle part per pitch.

Specifications

• Part number: SK30-8 — Kee Klamp type 30, size 8
• Fits pipe: 1-1/2" nominal bore, 1.900" outside diameter
• Material: galvanized cast steel, corrosion resistant
• Fixing: set screws supplied, tightened with a hex key — no welding, threading or hot work
