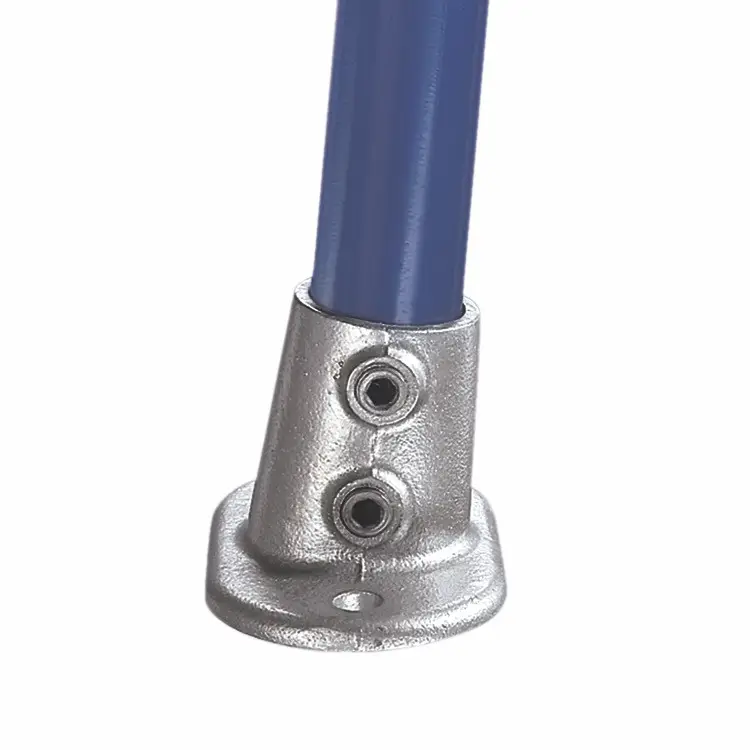

SK67-8 Angle Flange

SK67-8 Angle Flange

$79.97

Sets an upright at a pitch of 3 to 11 degrees off vertical, so a post can follow a sloped surface instead of standing plumb.Bolts down through the base plate and locks to the pipe with set screws.

SKU SK67-8 Category

Need help specifying? Call (928) 314-4210 or stop by the shop at 2945 S Shari Ave, Yuma. Local pickup available.

Description

Sets an upright at a pitch of 3 to 11 degrees off vertical, so a post can follow a sloped surface instead of standing plumb.

Bolts down through the base plate and locks to the pipe with set screws. Common on ramp and stair railing that has to meet the grade and stay ADA compliant.

Specifications

  • Part number: SK67-8 — Kee Klamp type 67, size 8
  • Fits pipe: 1-1/2" nominal bore, 1.900" outside diameter
  • Material: galvanized cast steel, corrosion resistant
  • Fixing: set screws supplied, tightened with a hex key — no welding, threading or hot work

Additional information

Size

1-1/2"
Material

Galvanized Steel
